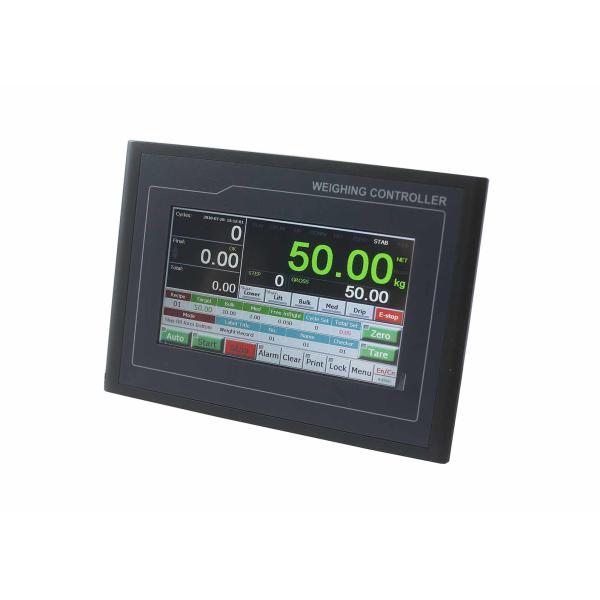

Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher

Name: Durable Digital Weight Indicator For Liquid Gas Powder Ration Filling Weigher
Brand: Supmeter
Price: 1 USD

Wholesale Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher from china suppliers

Brand Name : Supmeter

Model Number : BST106-M10(FL)

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500pcs per month

Delivery Time : 3-10 working day

Packaging Details : 1pcs/box

Power Supply : DC24V

DI : 9

DO : 18

AO : 2

COM/COM1 : RS232

COM2 : RS485

Contact Now

TFT-Touch Filling Controller/Digital Weight Indicator For Liquid/Gas/Powder Ration Fillingweigher

Main Features:

Suitable for Liquid/Gas/Powder Ration Fillingweigher.
Optional application modes: Fill on Drum’s Top / Fill on Drum’s Bottom / Step-fill from Bottom.
EMC design with high anti-jamming capability, suitable for industrial environment.
Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
Loadcell Interface

Max. Connection Quantity: 16 Loadcells (350Ω).
24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

I/O Interface

9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
Optional ‘High-speed/Medium-speed/Low-speed Fill’ DOs for Filling control. Optional Low-speed Filling Modes: Continuous Filling Mode and Inching Filling Mode.
2 Definable analog signal AO[0~10V] for weight signal output or ‘High-speed/Medium-speed /Low-speed Fill’ control.

Digital Communication Interface

COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
COM[RS232] for connecting RS232 Serial Printer.
USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

Software Function

Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
Load Calibration function available.
10 Recipes for filling control.
Optional ‘Fall Value Auto Correction’ function.
Optional ‘Auto Pause for Deviation Alarm’ and ‘Auto Re-fill’ functions.
‘Target Batch [Count/Weight] Finished’ alarm function available.
The Batch Records can be printed automatically.
Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Pictures

Data Display&Quick Setting

Name	Description	Authorization
[NET]	Net Weight [Weight Unit].
[FIL]	Filling Process Ended.
[GROSS]	Gross Weight.
[HIGH]	Gross Weight Upper Limit Alarm.
[OVLD]	Overload Alarm.
[PCS]	Batch Count.
[FINAL]	Final Filling Weight.
[▲]/[HI]	Positive Deviation Alarm and ‘Deviation & Limit Set’.	Administrator
[▼]/[LO]	Negative Deviation Alarm and ‘Deviation & Limit Set’.	Administrator
[TOT]	Totalized Weight.
[Date&Time]	Date&Time.
[RUN]	Auto Running state.
[PAUSE]	Pause state.
[DRUM]	DI switch ‘Empty Drum Ready’ turned on.
[UP]	Filling Gun Lift in Place.
[DOWN]	Filling Gun Lowered in Place.
[HIT]	Filling Gun Impacting Drum Alarm.
[ZERO]	Gross Weight ≤ Non-load Zero Range.
[STAB]	Weight is stable.
[FIN]	Target Batch [Count/Weight] Finished.
[Highest Filling Position ]	DI switch ‘Highest Step-filling Position Limit’ turned on.
[RECIPE]	‘Working Recipe No.’ Selection.	All Users
[RECIPE]	Recipe Parameter Setting.	Engineer
[TARGET]	‘Target Value’ Setting.	All Users
[HIGH]	‘SP1 Lead Value for High-speed Filling’ Setting.	Engineer
[HIGH]	‘DO Filling's Mode’ Parameter Setting.	Administrator
[MED]	‘SP2 Lead Value for Medium-speed Filling’ Setting.	Engineer
[MED]	‘DO Filling's Mode’ Parameter Setting.	Administrator
[FALL]	‘SP3 Fall Value for Low-speed Filling’ Setting.	Engineer
[FALL]	‘Fall Value Auto Correction’ Parameter Setting. ‘AUTO FALL’: Fall Value Auto Correction function is open. ‘FREE FALL’: Fall Value Auto Correction function is closed.	Administrator
[MODE]	APP1 Fill on Top / APP2 Fill on Bottom / APP3 Step-fill from Bottom. Refer to Parameter [300] ‘Application Mode’.	Administrator
[BAT. CNT]	‘Target Batch Count’ Setting.	All Users
[BAT. WT]	‘Target Batch Weight’ Setting.
[Label Print Information]	Label title, No., Name and Checker Setting.

Outline Size

Terminal Diagram
